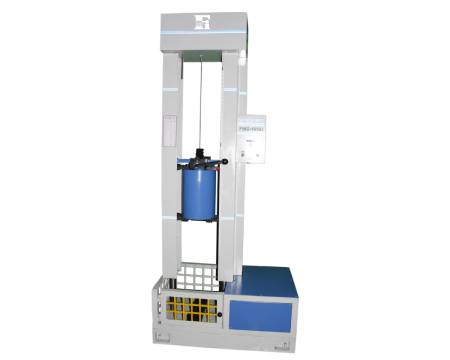

Drop weight Impact Testing Machine, Model - FMDW 1650 J

Drop weight Impact Testing Machine especially designed for Testing toughness of welded joints. This machine confirms to ASTM E-208 standard.
Technical specification :
Energy | 350,400,450,550,800,1100,1350,1650 J | ||||
Drop Weight | 136 kg | ||||
Height of fall | 1237 mm (max) adjustable to get the desired energies | ||||
Striking tip | Radius 25.4 mm, Hardness 50 HRC (Min) | ||||
Striker lifting arrangement | Motorized driven by electrical motor | ||||
Speed of lifting | 1.2 mtr/min (approx) | ||||
Anvil | 1.2 mtr/min (approx) | ||||
Anvil | as per Fig. 4 of ASTM –E-208 | ||||
Power supply | 415V, 50Hz Z/c. | ||||
Motor | 0.25 HP, 3 Phase, 415V, 50Hz A.C. | ||||
