Digital Motorised Coil Spring Testing Machine

( View / Download pdf )

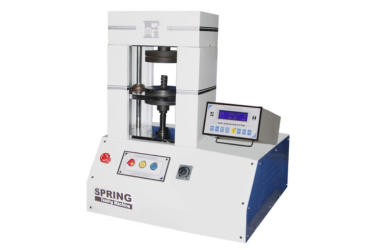

Digital Motorised Coil Spring Testing Machine

Technical Specification :
Model FSTM-2500 N FSTM-5000 N
Measuring Capacity (N) 2500 5000
Measuring Range(N) 0-2500 0-5000
Least Count(N) 0.1 0.2
Load Range in N with accuracy of measurement ± 1 % 2 % to 100 % 2 % to 100 %
Maximum clearance between crosshead in mm 250 250
Elongation scale least count in mm 0.01
Traverse Speed in mm / min Variable speed drive
Motor HP

0.5 HP
Supply Single phase 230 volts 50 Hz. AC
Over travel Safety Provided with each model

Standard Accessories :
Compression plate Dia 70 mm for compression mode

2 Nos. 2 Nos.
Hooks for Tension Mode 2 Nos. 2 Nos.
Allen Key Set 1 No. 1 No.
FMI Reserves the rights of change in the above specification due to constant improvements in design.
