Combine Impact Testing Machine

( View / Download pdf )

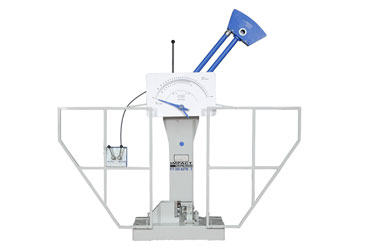

Combine Impact Testing Machine

Features :
  • Capacity: Charpy : 300 Joule, Izod: 170 Joule.
  • Main feature of this machine is, it conform to all respective standards. (i.e.Charpy / Izod ASTM E-23, BS 131 & BSEN ISO -148 & IS 3766- 1977, IS 1598-1977, IS 1757-1988, IS 1499- standard).
    ( User need not to buy a separate machine for each standard. )
  • For Indirect verification NIST/ ERM Charpy samples can be arranged.
  • According to test, user can select Charpy strikers(Radius R 2 mm or R8 mm) or Izod strikers (Radius R 0.75 mm).
  • To prevent accident from pendulum swing, safety guards are provided to either side of machine.
  • Latch Lock is provided for pendulum latch mechanism for safety.
  • New modified Brake drum unit is provided to stop the pendulum swing instantly after test.
  • Optional Digital display unit can also be supplied.
  • Total Maintenance free machine

Standard Accessories :
  • Charpy Striker radius R 2 mm, R 8 mm each - 1 No.
  • Izod Strike R 0.75 mm - 1 No.
  • Charpy - Izod support Block - 1 No.
  • Specimen setting Gauges for Charpy & Izod - 1 Each.
  • Allen key Set - 1 set.
  • Instruction Manual - 1 No.
  • Foundation bracket - 1 No

Model :
FIT -300-EN-ASTM
